Current Sensors · Closed Loop

OPCO Series

Name: OPCO Series
Brand: ADISENS

Precision current measurement for demanding power-conversion systems.

Closed-loop Hall-effect current transducers for accurate AC, DC and pulsed-current measurement across industrial drives, power conversion, renewable energy, UPS and selected railway applications.

200–2000 ANominal current range

< 1 µsResponse time*

Up to 200 kHzBandwidth*

6 kV RMSDielectric withstand*

* Depending on current rating and validated reference. See technical datasheets.

ADISENS OPCO closed-loop current sensor family

Connector overview

Four connection formats across the OPCO family

Visitors can immediately identify the main connection configurations used in the OPCO range before selecting the detailed reference in the matrix below.

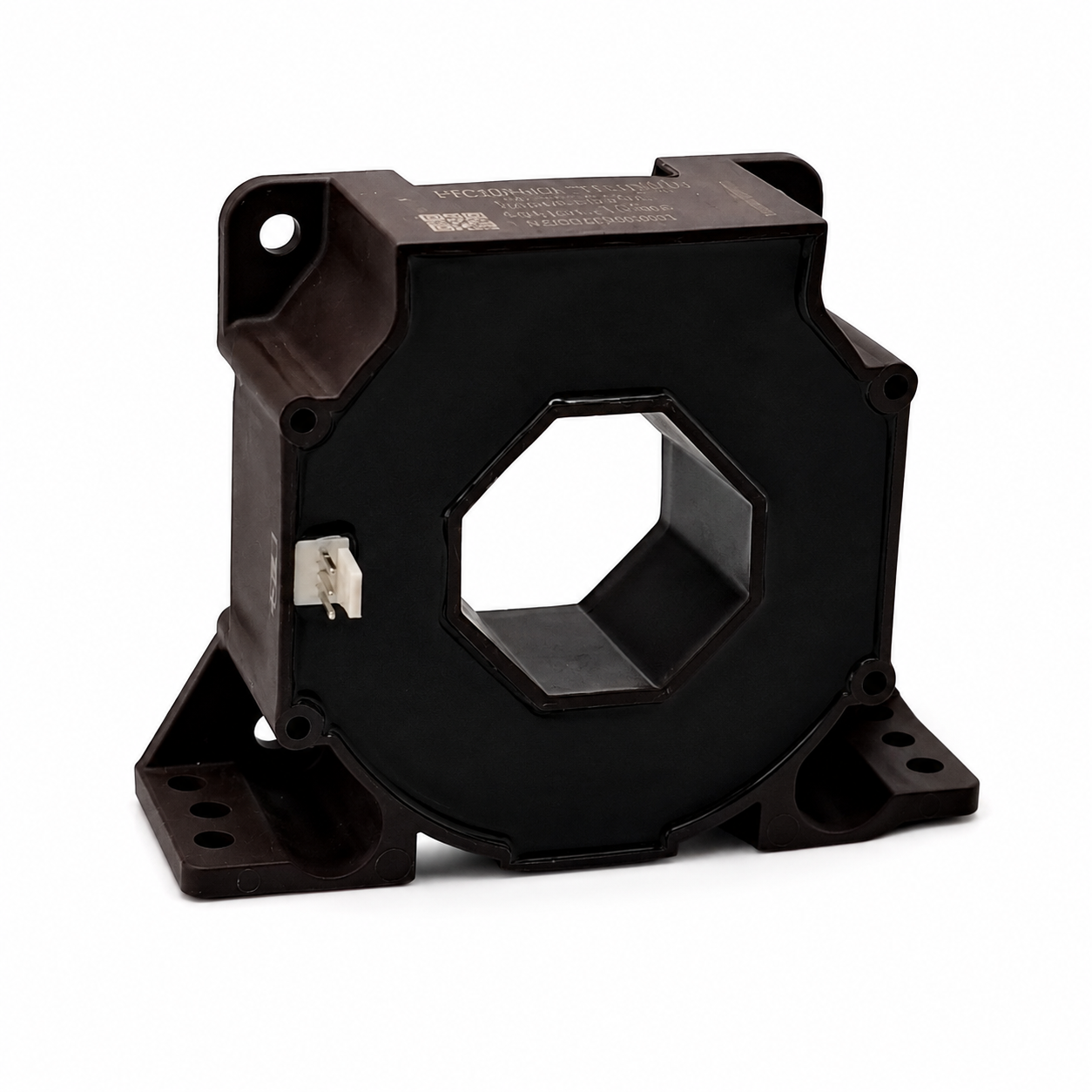

OPCO sensor with JST-VH 3-pole connector

JST-VH · 3 polesSuffix J3

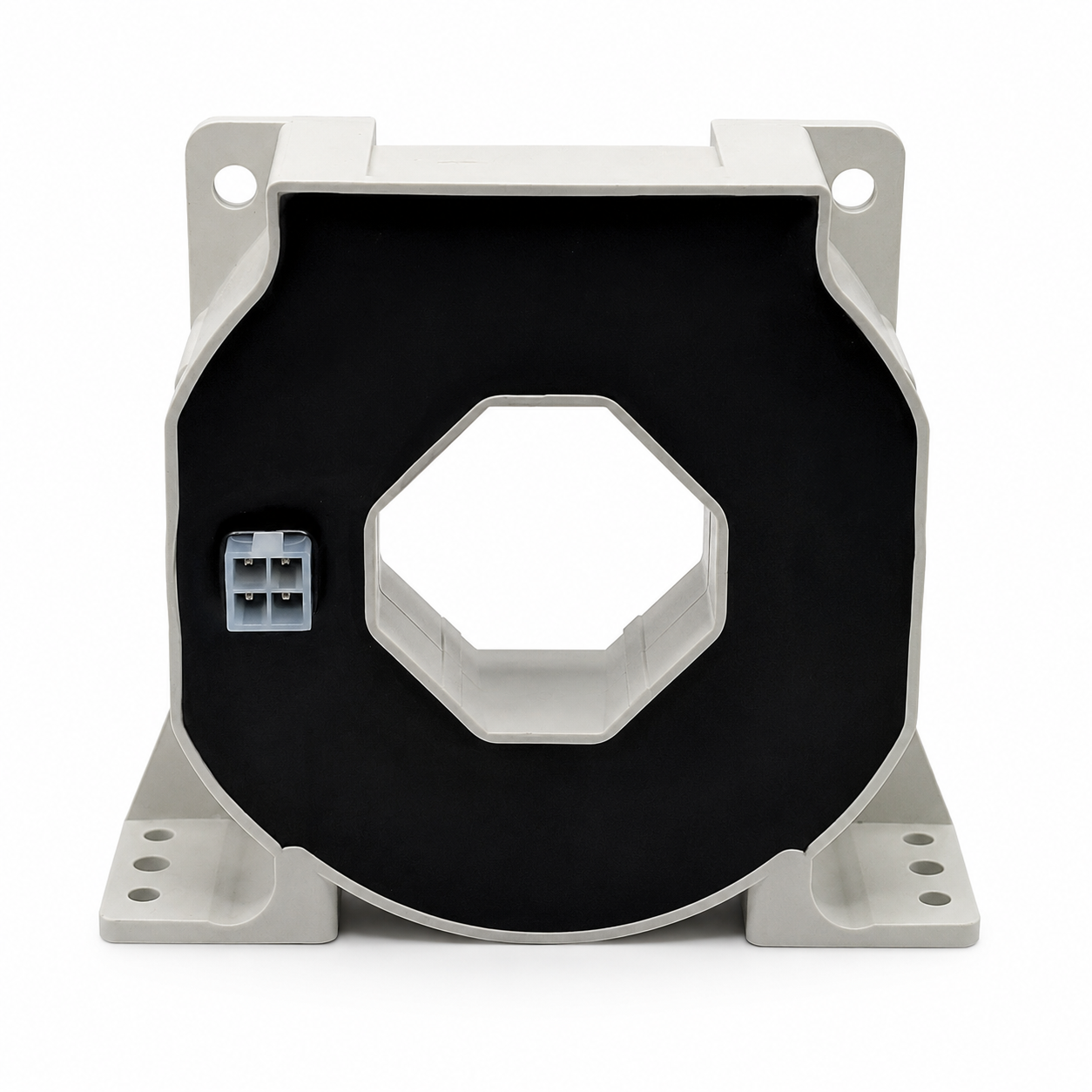

OPCO sensor with MOLEX Mini-Fit Jr 4-pole connector

MOLEX Mini-Fit Jr · 4 polesSuffix M4

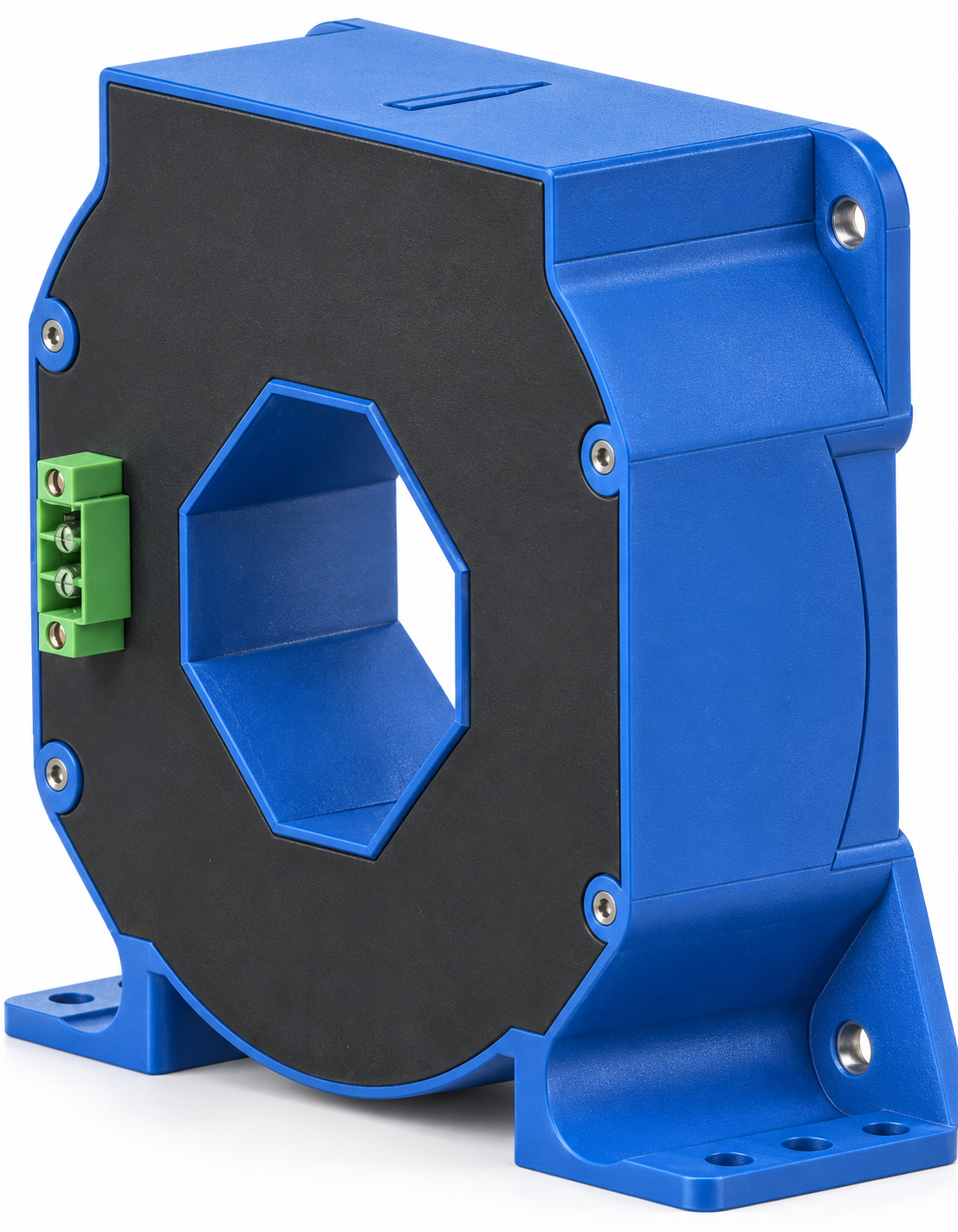

OPCO sensor with Phoenix 3-pole connector

Phoenix · 3 polesSuffix H3

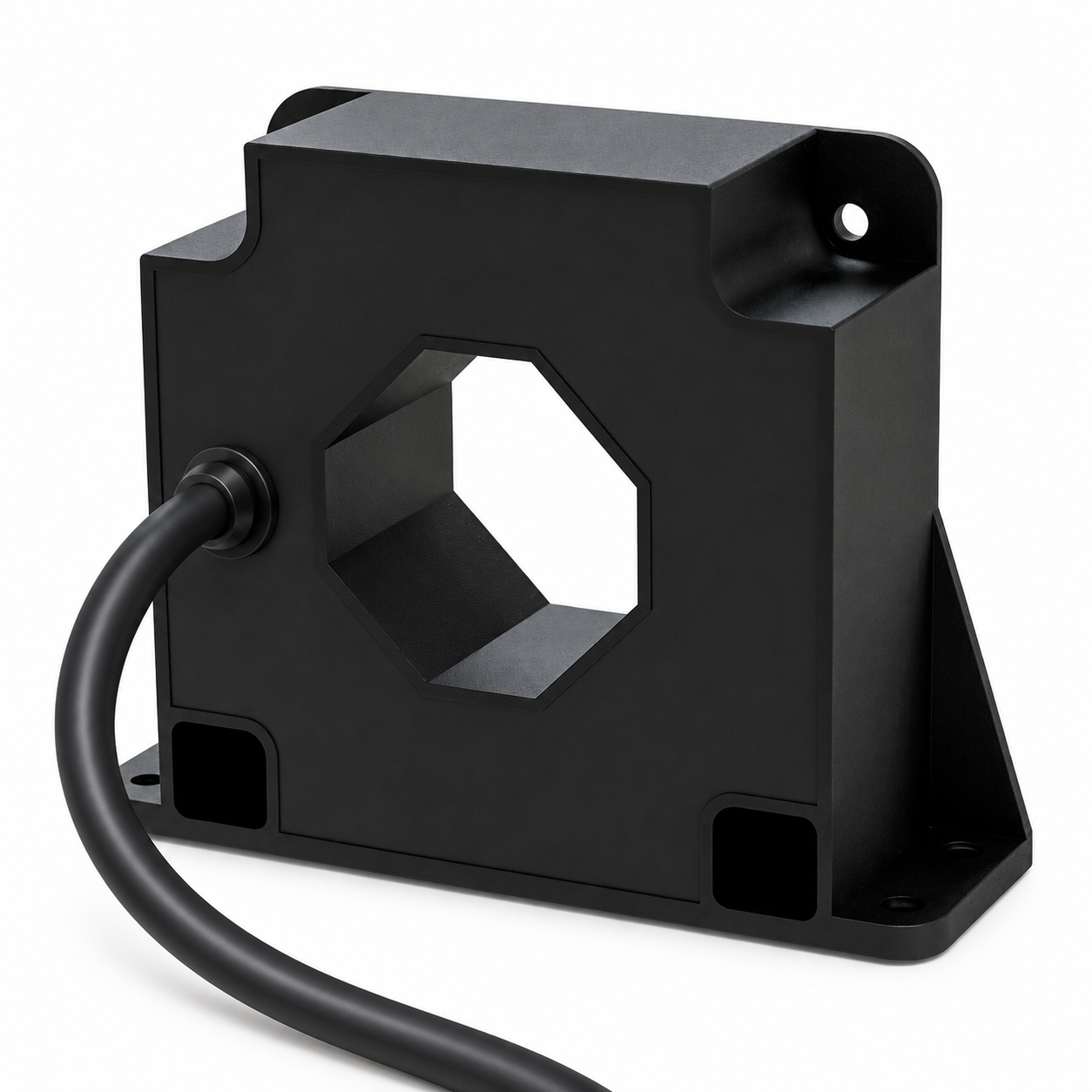

3-wire cable · 20 cmSuffix C3-2

Connection options

Choose the electrical interface that fits your system

The suffix in an OPCO reference identifies the connection option. The code is shown only after the interface is explained.

JST-VH connector

3 poles

Reference suffix J3

MOLEX Mini-Fit Jr connector

4 poles

Reference suffix M4

Phoenix connector

3 poles

Reference suffix H3

Cable output

3 wires · 20 cm

Reference suffix C3-2

How to read a referenceOPCO-500-M4

OPCOProduct family500500 A nominal currentM4MOLEX Mini-Fit Jr · 4 poles

Product selection

Select the current rating first

Technical performance below is based on the currently controlled J3 datasheets.

Nominal current	Measuring range	Bandwidth	Accuracy	Response	J3 Datasheet
200 A	±420 A	100 kHz	< ±0.5%	< 1 µs	PDF ↗
300 A	±500 A	100 kHz	< ±0.2%	< 1 µs	PDF ↗
500 A	±1570 A	150 kHz	< ±0.5%	< 1 µs	PDF ↗
1000 A	±1500 A	150 kHz	< ±0.2%	< 1 µs	PDF ↗
2000 A	±3500 A	200 kHz	< ±0.2%	< 1 µs	PDF ↗

Standard configurations

Then choose the connection

Each current rating is available with the four connection interfaces defined for the OPCO family.

Nominal current	JST-VH · 3 poles Suffix J3	MOLEX Mini-Fit Jr · 4 poles Suffix M4	Phoenix · 3 poles Suffix H3	3-wire cable · 20 cm Suffix C3-2
200 A	OPCO-200-J3 PDF ↗	OPCO-200-M4Available on request	OPCO-200-H3 PDF ↗	OPCO-200-C3-2 PDF ↗
300 A	OPCO-300-J3 PDF ↗	OPCO-300-M4 PDF ↗	OPCO-300-H3 PDF ↗	OPCO-300-C3-2 PDF ↗
500 A	OPCO-500-J3 PDF ↗	OPCO-500-M4 PDF ↗	OPCO-500-H3 PDF ↗	OPCO-500-C3-2 PDF ↗
1000 A	OPCO-1000-J3 PDF ↗	OPCO-1000-M4 PDF ↗	OPCO-1000-H3 PDF ↗	OPCO-1000-C3-2 PDF ↗
2000 A	OPCO-2000-J3 PDF ↗	OPCO-2000-M4 PDF ↗	OPCO-2000-H3 PDF ↗	OPCO-2000-C3-2 PDF ↗

Custom OPCO Need a modified current range, connection, cable, housing or integration configuration?

Request a Custom Product →

Engineering performance

Built for dynamic current measurement

High Accuracy

Reference-level accuracy down to < ±0.2% at nominal current on selected ratings.

Fast Response

Response time below 1 µs on the validated OPCO references.

Wide Bandwidth

DC measurement with bandwidth up to 200 kHz depending on current rating.

Galvanic Isolation

6 kV RMS dielectric withstand between primary and secondary circuits on the validated references.

Power Electronics Ready

Designed for current feedback in converter and control architectures.

Standards & Compliance

Reference-level compliance made visible

Standards and compliance depend on the selected OPCO reference. Only validated requirements are presented at family level; detailed conformity information remains available by reference.

IEC 60950-1Electrical safety reference identified on validated OPCO datasheets.

EN 50178Electronic equipment for use in power installations, where applicable.

EN 50155Displayed only for OPCO references where railway compliance is specifically identified.

CE · RoHS · REACHConformity and environmental information available from ADISENS.

6 kV RMSDielectric withstand on validated references according to the corresponding datasheet.

Applications

Where OPCO fits

Application suitability depends on the selected current rating and controlled datasheet.

Renewable EnergySolar and wind power conversion Industrial DrivesMotor control and variable-speed drives UPS & Power SuppliesBattery, UPS and switching power supplies Power ConversionInverters, VFDs and converter architectures Railway & TractionSelected high-current references WeldingApplicable references for welding power supplies

Selection support

Need help selecting the right OPCO?

Share your nominal current, measuring range, supply and connection requirements with our technical team.

Request Technical Support →

Custom engineering

Need a different configuration?

ADISENS can review electrical, mechanical and connection adaptations for project requirements.

Request a Custom Solution
