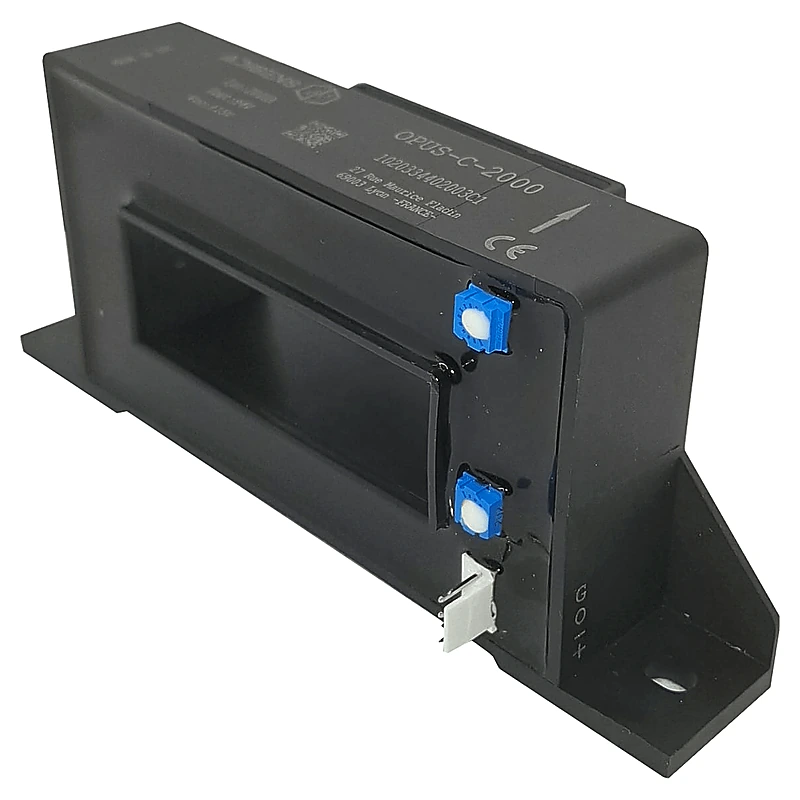

OPUS Series
High-current open-loop sensing for demanding power-electronic systems.
The OPUS family is designed for precise electronic measurement of DC, AC, pulsed and mixed currents with galvanic isolation between the primary high-power circuit and the secondary electronics.
Six current ratings on one robust high-current platform
All published OPUS J3 references share the same open-loop Hall-effect architecture, ±15 V supply, proportional bipolar analog output, 25 kHz bandwidth and 5 kV dielectric strength.
OPUS J3 reference table
Click a J3 reference to open its controlled technical datasheet in a new tab.
| Reference | Nominal current | Measuring range | Sensitivity | Supply | Accuracy | Response | Bandwidth | Isolation | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| OPUS-500J3 PDF ↗ | 500 A | ±1500 A | 8 mV/A | ±15 V | ±0.5% typ. | 5 µs | 25 kHz | 5.0 kV | Open PDF ↗ |
| OPUS-850J3 PDF ↗ | 850 A | ±2550 A | 4.71 mV/A | ±15 V | ±0.5% typ. | 5 µs | 25 kHz | 5.0 kV | Open PDF ↗ |
| OPUS-1000J3 PDF ↗ | 1000 A | ±3000 A | 4 mV/A | ±15 V | ±0.5% typ. | 5 µs | 25 kHz | 5.0 kV | Open PDF ↗ |
| OPUS-1500J3 PDF ↗ | 1500 A | ±4500 A | 2.67 mV/A | ±15 V | ±0.5% typ. | 5 µs | 25 kHz | 5.0 kV | Open PDF ↗ |
| OPUS-2000J3 PDF ↗ | 2000 A | ±5500 A | 2 mV/A | ±15 V | ±0.5% typ. | 5 µs | 25 kHz | 5.0 kV | Open PDF ↗ |
| OPUS-2500J3 PDF ↗ | 2500 A | ±5500 A | 1.6 mV/A | ±15 V | ±0.5% typ. | 5 µs | 25 kHz | 5.0 kV | Open PDF ↗ |
Additional connection configurations are available
The J3 configuration is the currently documented standard on this page. Depending on the project, OPUS can also be supplied with alternative secondary connection formats.
Designed for high-power current measurement
±0.5% typical accuracy at 25°C across the published OPUS J3 range.
Nominal ratings from 500 A to 2500 A with measuring ranges extending up to ±5500 A.
5 µs typical response time and 25 kHz bandwidth for dynamic current waveforms.
5.0 kV dielectric strength between primary and secondary circuits.
Operating temperature range from −40°C to +105°C for demanding industrial environments.
Electrical-safety and environmental references
The supplied OPUS J3 datasheets identify IEC 61010-1 and EN 50178 as relevant electrical-safety references. CE conformity and RoHS / REACH documentation are available from ADISENS.
